Toyota Hilux (1986-1988) 2.2 Ltr, 4Y Clutch Kit
Search Products
V96NHD
Product Description
Clutch Direct are proud to offer PHC clutch upgrades for your 4x4. Increase the torque handling capability of your Clutch Direct upgraded 4x4. Perfect for tuned and enhanced 4x4's, or even those who just want to push the limits off-road.
Product Specification
- Clutch Plate Dimensions: 235 x 21T x 29.0
- Dual Mass Flywheel: Not Included
- Solid Flywheel: Not Included
- Concentric Slave Cylinder: Not Included
- Torque Capacity: Peak: 413Nm, Recommended: 330Nm
- Flywheel Spec: +0.5
- Spigot: RSB506
- Alignment: CAT199
- Length: 28
- Width: 27
- Height: 10.5
More Information
This kit includes : Heavy duty cover assembly with 20% (typical) increase in torque capacity / clamp load, Clutch plate, Release bearing
V96N
Product Description
Clutch Direct are proud to offer PHC clutch upgrades for your 4x4. Increase the torque handling capability of your Clutch Direct upgraded 4x4. Perfect for tuned and enhanced 4x4's, or even those who just want to push the limits off-road.
Product Specification
- Clutch Plate Dimensions:
- Dual Mass Flywheel: Not Included
- Solid Flywheel: Not Included
- Concentric Slave Cylinder: Not Included
- Torque Capacity:
- Flywheel Spec: +0.5
- Spigot: RSB506
- Alignment: CAT199
- Length: 35
- Width: 35
- Height: 18
More Information
This kit includes : Cover assembly, Clutch plate, Release bearing
4TU96N
Product Description
Clutch Direct are proud to offer 4Terrain clutch upgrades for your 4x4. Increase the toque handling capability of your Clutch Direct upgraded 4x4. Perfect for tuned and enhanced 4x4's, or even those who just want to push the limits off-road
PRODUCT DESCRIPTION
PATENTED 4TERRAIN OFF ROAD COVER ASSEMBLY
4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation.
SPHEROIDAL GRAPHITE CASTINGS
Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.
BALANCED COVERS
To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.
4TERRAIN DUAL FRICTION CLUTCH PLATE
4Terrain Ultimate Clutch Kits feature a dual friction clutch plate. Organic material on the flywheel side is replaced with Aramid, the same material used in bulletproof vests, for improved fade resistance and increased torque capacity due to a higher coefficient of friction. 4Terrain Ultimate plates are the ultimate for your 4x4.
Product Specification
- Clutch Plate Dimensions: 235 x 21T x 29.0
- Dual Mass Flywheel: Not Included
- Solid Flywheel: Not Included
- Concentric Slave Cylinder: Not Included
- Torque Capacity: Peak: 538Nm, Recommended: 377Nm
- Flywheel Spec: +0.5
- Spigot: RSB502
- Alignment: CAT180
- Length: 46
- Width: 36
- Height: 18
CI Heavy Duty, 4Terrain Heavy Duty & 4Terrain Ultimate Clutch Kits come with a 36 month warranty, or 50,000km's, whichever occurs first, from date of purchase. This includes (from date of purchase) parts and labour for a period of 2 years or 40,000 kilometres (whichever occurs first) and a further 12 months or 10,000 kilometres (whichever occurs first) parts only warranty). (S) BEYOND THAT WHICH WAS SPECIFIED BY THE ORIGINAL VEHICLE MANUFACTURER WITHOUT FIRST INSTALLING APPROPRIATE SAFETY EQUIPMENT, INCLUDING BUT NOT LIMITED TO TRANSMISSION GUARD
More Information

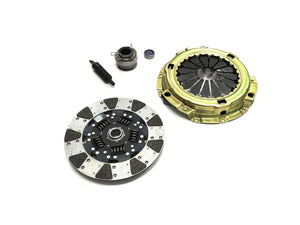

This kit includes : 4TERRAIN ER2 Heavy Duty Cover Assembly, 4Terrain Aramide Dual Friction, High Torque, Clutch Plate, Release bearing , Clutch Alignment Tool, Spigot Bearing
